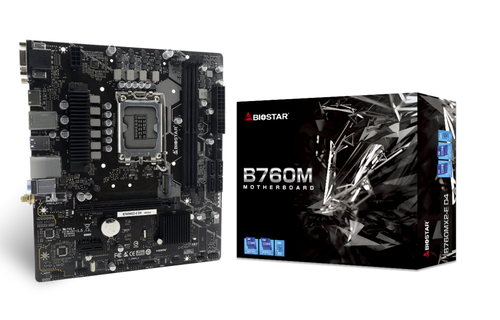

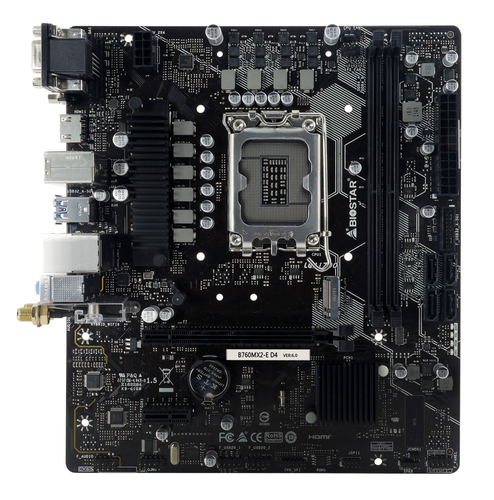

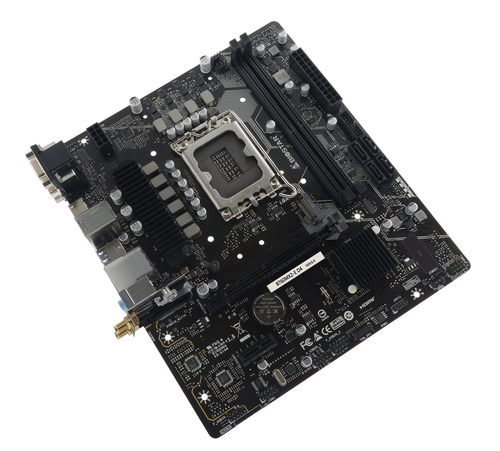

Biostar B760MX2-E D4 motherboard Intel B760 LGA 1700 micro ATX
Biostar

$110.00  $106.69
Shipping from $0.00*
Hardware/ Electronic
Biostar
Shipping charges are minimized.
BiostarBiostarBiostar64 visitors
are looking at this item
Delivery to US in: 4-8 workdays (only 1 left in stock)
Sales Rank: #47 in Motherboards
#1687 in Computer
Style: Motherboards
Product No.: 2100782600
Description:MB Biostar B760MX2-E D4 (B760,S1700,mATX,Intel) (B760MX2-E D4)
schwarz
-Formfaktor: µATX
-Grafik: 1x PCIe x16
-Sockel: 1700
-Chipsatz: Intel® B760
Manufacturer-Nr.: B760MX2E D4
Manufacturer No.: B760MX2-E D4
Product Safety
Compare with similar items
ITEMS
Biostar B760MX2-E D4 motherboard Intel B760 LGA 1700 micro ATX
GIGABYTE B650E AORUS STEALTH ICE Motherboard - Unterstützt AMD Ryzen 9000 CPUs, 12+2+2 Phasen VRM, bis zu 8000MHz DDR5 (OC), 1xPCIe 5.0 M.2 + 3xPCIe 4.0 M.2, Wi-Fi 7, 2.5GbE LAN, USB 3.2 Gen 2x2
MSI B450M-A PRO MAX II motherboard AMD B450 Socket AM4 micro ATX
MB GBT Intel 1700 Q670M D3H - Micro/ Mini/ Flex-ATX - USB 3.1 - 3.0 - USB 3.0 - PCI (Q670M D3H)
ASUS PROART B650-CREATOR AMD B650 Socket AM5 ATX
  "Biostar-Biostar B760MX2-E D4 motherboard Intel B760 LGA 1700 micro ATX-Biostar-Hardware/Electronic" "Gigabyte-GIGABYTE B650E AORUS STEALTH ICE Motherboard - Unterstützt AMD Ryzen 9000 CPUs, 12+2+2 Phasen VRM, bis zu 8000MHz DDR5 (OC), 1xPCIe 5.0 M.2 + 3xPCIe 4.0 M.2, Wi-Fi 7, 2.5GbE L-Gigabyte-Accessories" "Msi-MSI B450M-A PRO MAX II motherboard AMD B450 Socket AM4 micro ATX-Msi-Accessories" "Gigabyte-MB GBT Intel 1700 Q670M D3H - Micro/ Mini/ Flex-ATX - USB 3.1 - 3.0 - USB 3.0 - PCI (Q670M D3H)-Gigabyte-Hardware/Electronic" "Asus-ASUS PROART B650-CREATOR AMD B650 Socket AM5 ATX-Asus-Hardware/Electronic"

Item number21007826002101222402210102544821010120482100766133
On offer since27.01.202327.07.202422.10.202311.10.202328.12.2022
Price$106.69$331.16$83.78$207.13$286.36
Weight0.83kg4.04kg0.72kg0.95kg2.53kg
ManufacturerBiostarGigabyteMsiGigabyteAsus
CategoryHardware/ElectronicAccessoriesAccessoriesHardware/ElectronicHardware/Electronic
Other interesting products in Motherboards
Asus - ASUS ROG STRIX Z790-E GAMING WIFI Intel Z790 LGA 1700 ATX
ASUS ROG STRIX Z790-E GAMING WIFI Intel Z7...
Asus

$433.07
Asus - ASUS PRIME N100I-D D4 NA (integrated CPU) mini ITX
ASUS PRIME N100I-D D4 NA (integrated CPU) ...
Asus

$120.60
Asus - ASUS TUF Gaming B760-Plus WIFI Intel B760 LGA 1700 ATX
ASUS TUF Gaming B760-Plus WIFI Intel B760 ...
Asus

$184.10
Msi - MSI MAG X870 TOMAHAWK WIFI motherboard AMD X870 Socket AM5 ATX
MSI MAG X870 TOMAHAWK WIFI motherboard AMD...
Msi

$336.06
As-rock - Asrock A620I Lightning WiFi AMD A620 Socket AM5 mini ITX
Asrock A620I Lightning WiFi AMD A620 Socke...
As-rock

$156.74
Asus - ASUS TUF GAMING B650-PLUS WIFI AMD B650 Socket AM5 ATX
ASUS TUF GAMING B650-PLUS WIFI AMD B650 So...
Asus

$213.85
Asus - ASUS TUF GAMING B650M-PLUS WIFI AMD B650 Socket AM5 micro ATX
ASUS TUF GAMING B650M-PLUS WIFI AMD B650 S...
Asus

$195.84
Technical specificationsLanguage
Storage controllers
Supported storage drive interfacesM.2, SATA III
Supported storage drive typesHDD & SSD
RAID supportYes
RAID levels0, 1, 5, 10
Features
Component forPC
Motherboard form factormicro ATX
Motherboard chipset familyIntel
Motherboard chipsetIntel B760
Audio output channels7.1 channels
Audio chipRealtek ALC897
PC health monitoringFan, Temperature, Voltage
Power source typeATX
Windows operating systems supportedWindows 10 x64, Windows 11 x64
Packaging content
Cables includedSATA
Expansion slots
PCI Express x1 (Gen 3.x) slots1
PCI Express x16 (Gen 4.x) slots1
Number of M.2 (M) slots1
Network
Wi-FiNo
Ethernet LANYes
Ethernet interface type2.5 Gigabit Ethernet
LAN controllerRealtek RTL8125B
Internal I/O
USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
USB 3.2 Gen 2 (3.1 Gen 2) connectors0
Number of SATA III connectors4
Front panel audio connectorYes
Front panel connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
EPS power connector (8-pin)Yes
TPM connectorYes

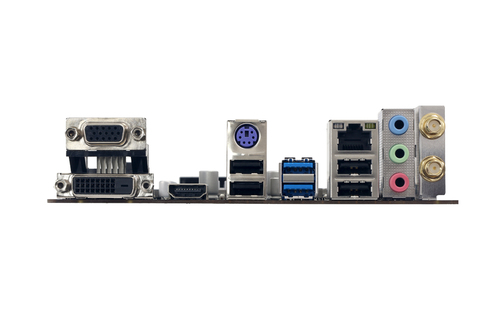

Rear panel I/O ports
USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0
Ethernet LAN (RJ-45) ports1
VGA (D-Sub) ports quantity1
HDMI ports quantity1
DVI-D ports quantity1
PS/2 ports quantity1
Processor
Processor manufacturerIntel
Processor socketLGA 1700
Compatible processor seriesIntel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9
Maximum number of SMP processors1
Memory
Supported memory typesDDR4-SDRAM
Number of memory slots2
Maximum internal memory64 GB
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds1866,2133,2400,2666,2933,3200,3600,3800,4000,4400 MHz
Weight & dimensions
Width236 mm
Depth208 mm
