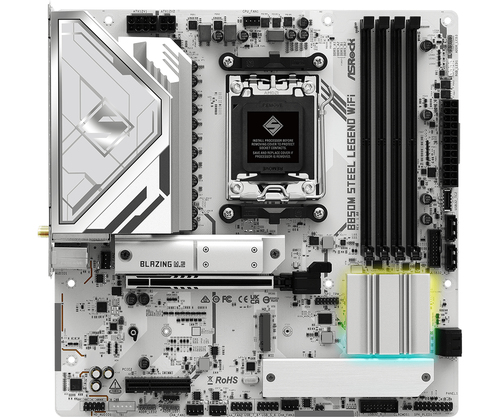

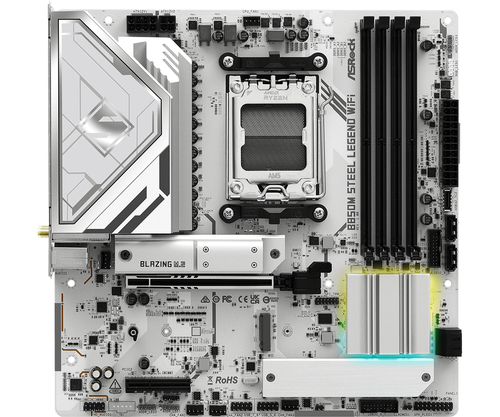

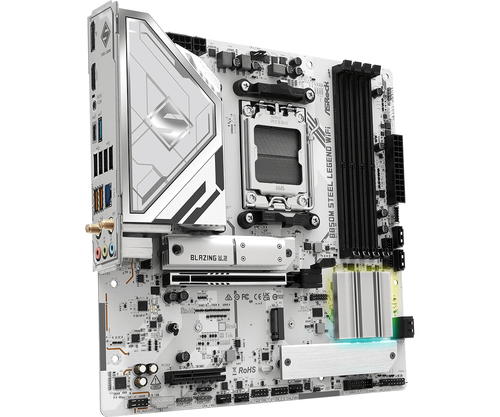

Asrock B850M Steel Legend WiFi AMD B850 Socket AM5 micro ATX
As-rock

$193.67
Shipping from $0.00*
Hardware/ Electronic
As-rock
Shipping charges are minimized.
As-rockAs-rockAs-rockAs-rockAs-rock91 visitors
are looking at this item
Delivery to US in: 4-8 workdays (only 8 left in stock)
Sales Rank: #26 in Motherboards
#942 in Computer
Style: Motherboards
Product No.: 2101340488
Manufacturer No.: 90-MXBS2-A0UAYZ
Product Safety
Compare with similar items
ITEMS
ASRock B850M Steel Legend WiFi AM5 mATX HDMI/DP DDR5
GIGABYTE B650E AORUS STEALTH ICE Motherboard - Unterstützt AMD Ryzen 9000 CPUs, 12+2+2 Phasen VRM, bis zu 8000MHz DDR5 (OC), 1xPCIe 5.0 M.2 + 3xPCIe 4.0 M.2, Wi-Fi 7, 2.5GbE LAN, USB 3.2 Gen 2x2
MSI B450M-A PRO MAX II motherboard AMD B450 Socket AM4 micro ATX
MB GBT Intel 1700 Q670M D3H - Micro/ Mini/ Flex-ATX - USB 3.1 - 3.0 - USB 3.0 - PCI (Q670M D3H)
ASUS PROART B650-CREATOR AMD B650 Socket AM5 ATX
  "As-rock-ASRock B850M Steel Legend WiFi AM5 mATX HDMI/DP DDR5-As-rock-Hardware/Electronic" "Gigabyte-GIGABYTE B650E AORUS STEALTH ICE Motherboard - Unterstützt AMD Ryzen 9000 CPUs, 12+2+2 Phasen VRM, bis zu 8000MHz DDR5 (OC), 1xPCIe 5.0 M.2 + 3xPCIe 4.0 M.2, Wi-Fi 7, 2.5GbE L-Gigabyte-Accessories" "Msi-MSI B450M-A PRO MAX II motherboard AMD B450 Socket AM4 micro ATX-Msi-Accessories" "Gigabyte-MB GBT Intel 1700 Q670M D3H - Micro/ Mini/ Flex-ATX - USB 3.1 - 3.0 - USB 3.0 - PCI (Q670M D3H)-Gigabyte-Hardware/Electronic" "Asus-ASUS PROART B650-CREATOR AMD B650 Socket AM5 ATX-Asus-Hardware/Electronic"

Item number21013404882101222402210102544821010120482100766133
On offer since03.02.202527.07.202422.10.202311.10.202328.12.2022
Price$193.67$331.16$83.78$207.13$286.36
Weight1.54kg4.04kg0.72kg0.95kg2.53kg
ManufacturerAs-rockGigabyteMsiGigabyteAsus
CategoryHardware/ElectronicAccessoriesAccessoriesHardware/ElectronicHardware/Electronic
Other interesting products in Motherboards
Asus - ASUS ROG STRIX Z790-E GAMING WIFI Intel Z790 LGA 1700 ATX
ASUS ROG STRIX Z790-E GAMING WIFI Intel Z7...
Asus

$433.07
Asus - ASUS PRIME N100I-D D4 NA (integrated CPU) mini ITX
ASUS PRIME N100I-D D4 NA (integrated CPU) ...
Asus

$120.60
Asus - ASUS TUF Gaming B760-Plus WIFI Intel B760 LGA 1700 ATX
ASUS TUF Gaming B760-Plus WIFI Intel B760 ...
Asus

$184.10
Msi - MSI MAG X870 TOMAHAWK WIFI motherboard AMD X870 Socket AM5 ATX
MSI MAG X870 TOMAHAWK WIFI motherboard AMD...
Msi

$336.06
As-rock - Asrock A620I Lightning WiFi AMD A620 Socket AM5 mini ITX
Asrock A620I Lightning WiFi AMD A620 Socke...
As-rock

$156.74
Asus - ASUS TUF GAMING B650-PLUS WIFI AMD B650 Socket AM5 ATX
ASUS TUF GAMING B650-PLUS WIFI AMD B650 So...
Asus

$213.85
Asus - ASUS TUF GAMING B650M-PLUS WIFI AMD B650 Socket AM5 micro ATX
ASUS TUF GAMING B650M-PLUS WIFI AMD B650 S...
Asus

$195.84
Technical specificationsLanguage
Storage controllers
Supported storage drive interfacesPCI Express 4.0, PCI Express 5.0, SATA III
Supported storage drive typesHDD & SSD
Number of storage drives supported7
RAID supportYes
RAID levels0, 1, 10
Features
Component forPC
Motherboard form factormicro ATX
Motherboard chipset familyAMD
Motherboard chipsetAMD B850
Audio output channels7.1 channels
Audio chipRealtek ALC1220
Product colourWhite
Windows operating systems supportedWindows 10 x64, Windows 11 x64
CertificationFCC, CE, ErP/EuP
Graphics
Parallel processing technology supportNot supported
Maximum resolution3840 x 2160 pixels
HDCPYes
BIOS
BIOS typeUEFI AMI
BIOS memory size256 Mbit

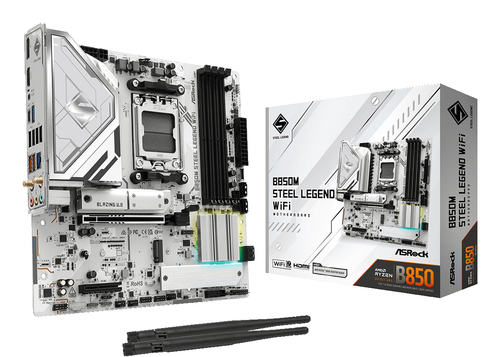

Packaging content
Cables includedSATA
Antenna includedYes
Screws includedYes
M.2 standoff includedYes
Expansion slots
PCI Express x4 (Gen 4.x) slots1
PCI Express x16 (Gen 5.x) slots1
Number of M.2 (M) slots3
1st M.2 largest key size2280
1st M.2 highest PCI Express generation5.0
2nd M.2 largest key size2280
2nd M.2 highest PCI Express generation4.0
3rd M.2 largest key size2280
3rd M.2 highest PCI Express generation4.0
Network
Wi-FiYes
Ethernet LANYes
Ethernet interface type2.5 Gigabit Ethernet
LAN controllerDragon RTL8125BG
Top Wi-Fi standardWi-Fi 7 (802.11be)
Wi-Fi standards802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
BluetoothYes
Bluetooth version5.4
Internal I/O
USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors3
USB 3.2 Gen 2 (3.1 Gen 2) connectors0
Number of SATA III connectors4
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of CPU fan connectors2
Number of chassis fan connectors3
EPS power connector (8-pin)Yes
Number of EPS power connectors (8-pin)1
TPM connectorYes
12V power connectorYes
RGB LED pin headerYes
Number of RGB LED pin headers1

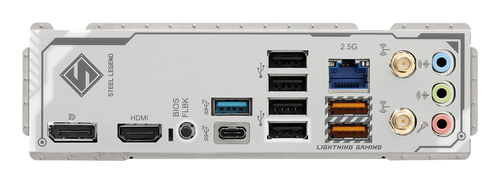

Rear panel I/O ports
USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
Ethernet LAN (RJ-45) ports1
VGA (D-Sub) ports quantity0
HDMI ports quantity1
DVI-D ports quantity0
HDMI version2.1
DisplayPorts quantity1
DisplayPort version1.4
Headphone outputs3
Line-inYes
Microphone inYes
WiFi-AP antenna jack2
USB connector typeUSB Type-A, USB Type-C
Processor
Processor manufacturerAMD
Processor socketSocket AM5
Compatible processor seriesAMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Supported processor socketsSocket AM5
Memory
Supported memory typesDDR5-SDRAM
Number of memory slots4
Maximum internal memory256 GB
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityECC & Non-ECC
Unbuffered memoryYes
Weight & dimensions
Width244 mm
Depth244 mm
